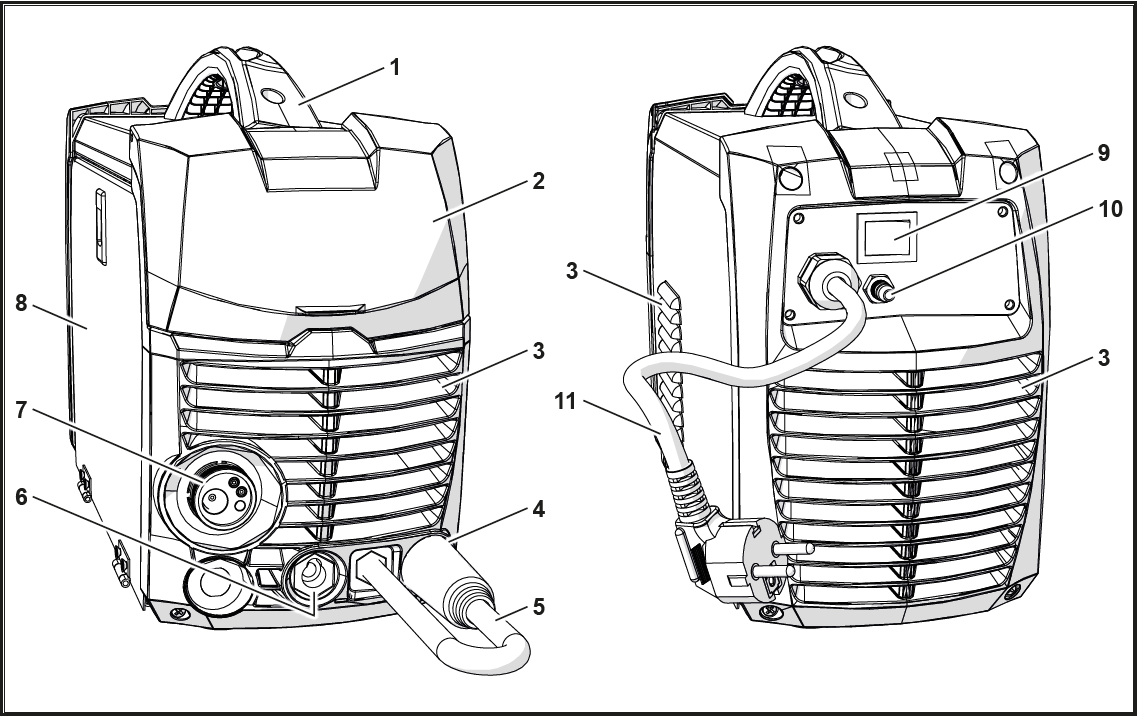

This article describes the controls and connections of the RED by Lorch welding machine RED MIG 210 Syn. Based on the drawings of the front and rear sides, the individual components are numbered. The following overview explains which connections, controls, and indicators are located at which position. This provides users with clear guidance to operate the device safely and efficiently.
| 1 | Handle |
| 2 | Control panel cover |
| 3 | Ventilation slots |
| 4 | Power socket positive pole |
| 5 | Polarity reversal cable |
| 6 | Power socket negative pole |
| 7 | Euro central connector socket for MIG-MAG torch |
| 8 | Side cover wire feed compartment |
| 9 | Main switch |
| 10 | Connection nozzle for shielding gas |
| 11 | Power supply cable |
Detailed information on commissioning, safety, and maintenance can be found in the "Usage" category as well as in the user manual of the RED by Lorch MIG 210 Syn welding machine
