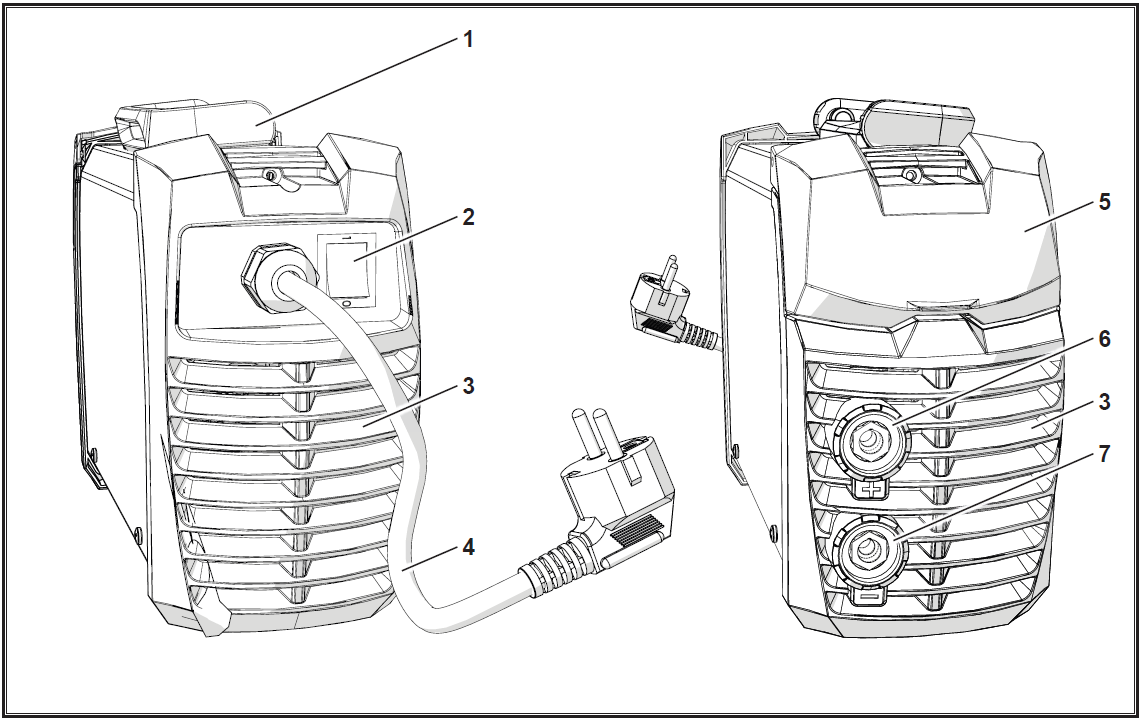

This article describes the controls and connections of the RED by Lorch arc welding machine RED MMA 160 PRO. The drawings of the front and rear sides show the individual components marked with numbers. The following overview explains which connections, controls, and indicators are located at which position. This provides users with clear guidance to operate the device safely and efficiently.
| 1 | Handle |
| 2 | Main switch |
| 3 | Ventilation slots |
| 4 | Power supply cable |
| 5 | Control panel cover |
| 6 | Positive pole power socket |
| 7 | Negative pole power socket |
Detailed information on commissioning, safety, and maintenance can be found in the category "Usage" as well as in the user manual of the RED by Lorch MMA 160 PRO welding machine
