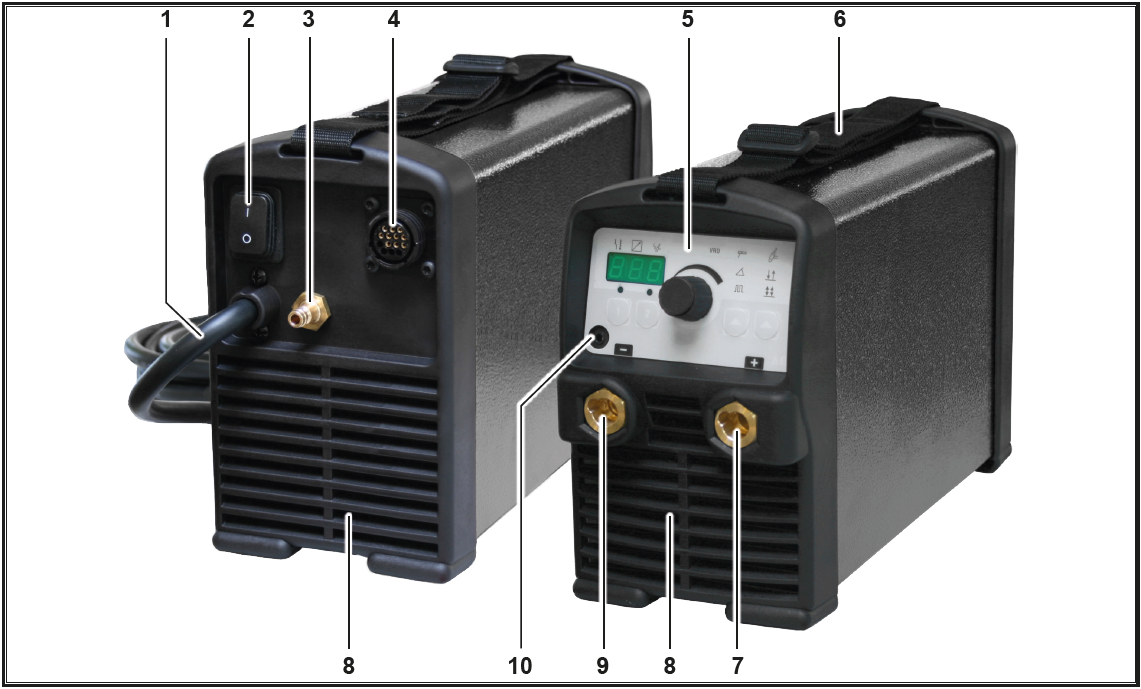

This article describes the controls and connections of the RED by Lorch electrode welding machine RED TIG 180 DC. The drawings of the front and rear sides show the individual components marked with numbers. The following overview explains which connections, controls, and displays are located at which positions. This provides users with clear orientation to operate the device safely and efficiently.
| 1 | Power cable |
| 2 | Main switch |
| 3 | Gas connection |
| 4 | Remote control socket |
| 5 | Display / control panel |
| 6 | Carrying strap |
| 7 | Plus pole connection socket |
| 8 | Air Vents |
| 9 | Minus pole connection socket (incl. shielding gas connection) |
| 10 | Torch control plug socket |
Detailed information on commissioning, safety, and maintenance can be found in the category "Usage" as well as in the operating manual of the RED by Lorch TIG 180 DC welding machine
