In this article you will find the spare parts list for the RED by Lorch MIG/MAG welding machine MIG 210 SYN with the material number 442.2001.0.

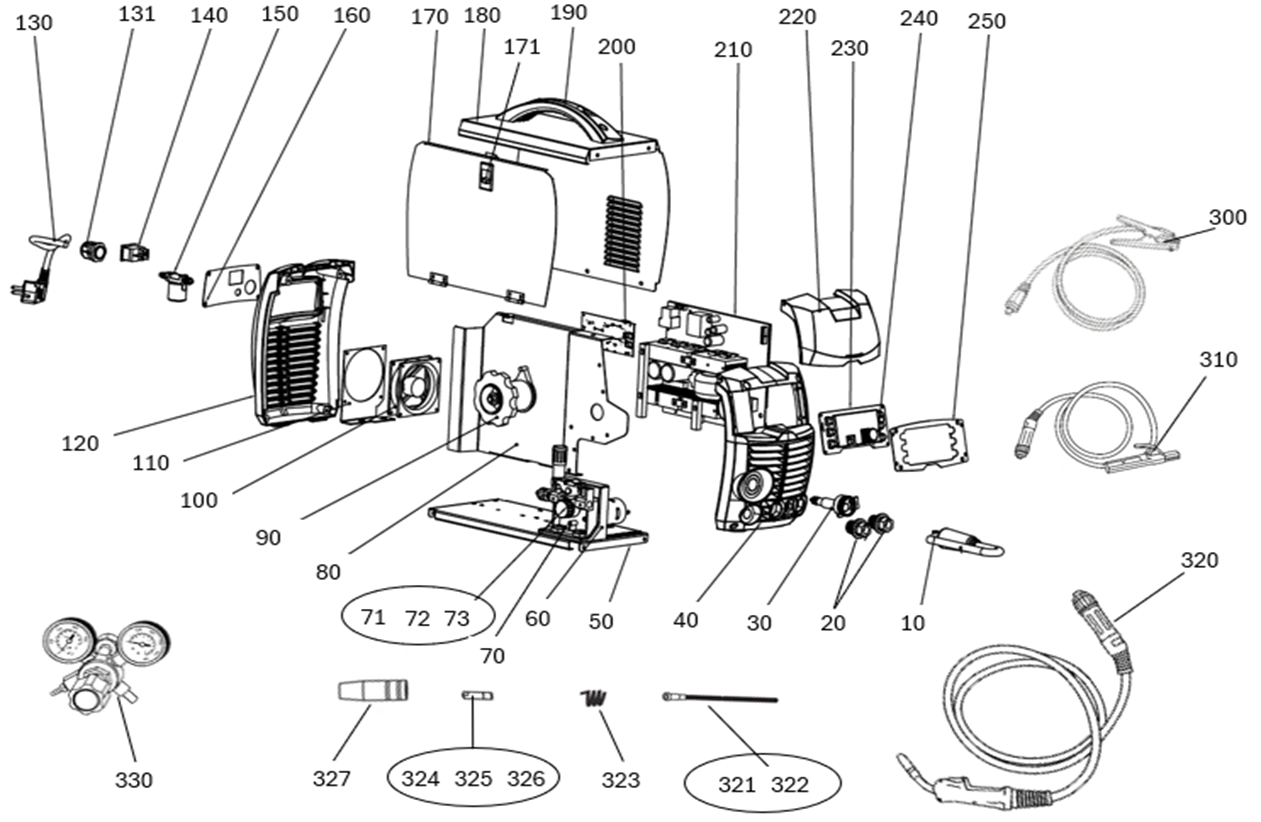

The exploded view shows the individual assemblies and components as well as accessories of the device, including numbering. In the table you will find the associated spare parts listed with their corresponding descriptions and material numbers.
| Pos | Mat.-Nr. | Description |
| 10 | 326.0603.0 | Plug |
| 20 | 326.0581.0 | Socket |
| 30 | 326.0605.0 | Euro Central Connector |
| 40 | 326.0606.0 | Front cover |
| 50 | 326.0607.0 | Bottom sheet metal |
| 60 | 326.0608.0 | Holder |
| 70 | 326.0609.0 | Wire Feeder |
| 71 | 326.0610.0 | Feed roller 0.8-1.0 Fe V-groove |
| 72 | 326.0611.0 | Feed roller 0.6-0.8 V-groove |
| 73 | 326.0612.0 | Feed roller 0.8-0.9 knurled |
| 80 | 326.0613.0 | Partition plate |
| 90 | 326.0614.0 | Wire Spool Shaft |
| 100 | 326.0615.0 | Fan |
| 110 | 326.0616.0 | Fan mount |
| 120 | 326.0617.0 | Rear cover |
| 130 | 326.0618.0 | Power cable |
| 131 | 326.0590.0 | Strain Relief |
| 140 | 326.0591.0 | Power switch |
| 150 | 326.0621.0 | Solenoid valve |
| 160 | 326.0622.0 | Rear panel |
| 170 | 326.0623.0 | Side cover |
| 171 | 326.0624.0 | Clip lock |
| 180 | 326.0625.0 | Housing |
| 190 | 326.0626.0 | Handle |
| 200 | 326.0627.0 | PCB (ML-EMC-236C) |
| 210 | 326.0628.0 | Main board |
| 220 | 326.0629.0 | Transparent cover |
| 230 | 326.0630.0 | Control panel ⚠️ Note: On devices up to S/N 41157-1131676, the front panel (pos. 250) must be replaced at the same time. On devices from S/N 41157-1134354 onwards, individual replacement is possible. |
| 240 | 326.0592.0 | Knob |
| 250 | 326.0632.0 | Front panel ⚠️ Note: On devices up to S/N 41157-1131676, must be replaced together with the control panel (pos. 230). |
| 300 | 326.0598.0 | Ground cable 2m |
| 310 | 326.0599.0 | Electrode holder |
| 320 | 326.0635.0 | Torch 3m |
| 321 | 520.0006.3 | Liner ML 0,6-0,9; 3m; blue1,5x4,5 |
| 322 | 520.0010.3 | Liner ML 1,0-1,2; 3m; red 2,0x4,5 |
| 323 | 520.8022.0 | Clamp ML 1500 |
| 324 | 522.2100.6 | Contact tip M6; E-CU; 20x6; 0,6 mm |
| 325 | 522.2100.8 | Contact tip M6; E-CU; 20x6; 0,8 mm |
| 326 | 522.2101.0 | Contact tip M6; E-CU; 20x6; 1,0 mm |
| 327 | 520.5215.2 | Gas nozzle conical, NW 12, size 18 |
| 330 | 326.0636.0 | Gas-Pressure regulator AR/CO2 |
