In this article you will find the spare parts list for the RED by Lorch electrode welding machine MMA 160 PRO with the material number 441.1601.0.

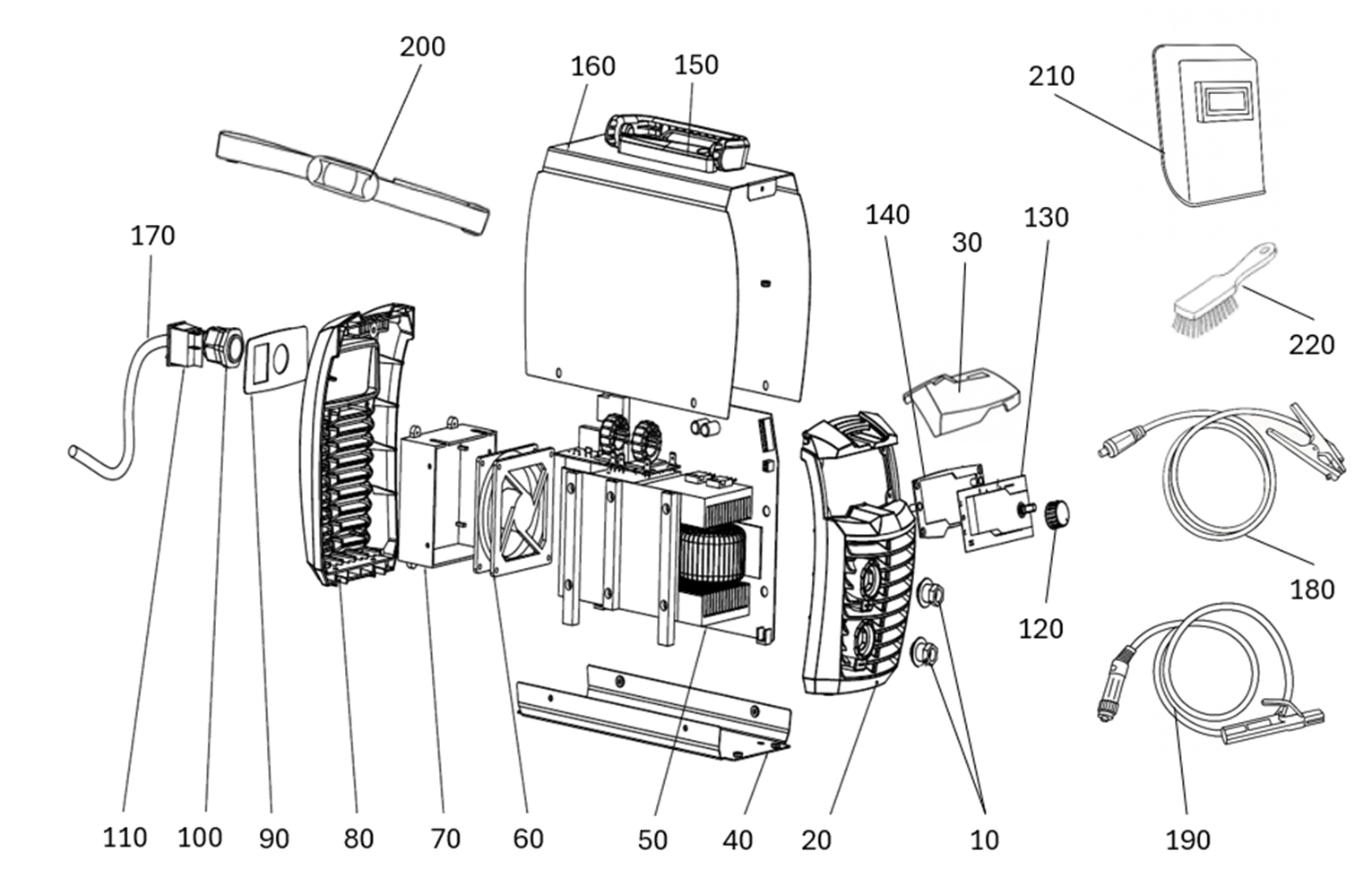

The exploded view shows the individual assemblies and components as well as accessories of the device, including numbering. In the table you will find the associated spare parts listed with their corresponding descriptions and material numbers.
| Pos | Mat. No. | Description |
| 10 | 326.0581.0 | Socket |
| 20 | 326.0582.0 | Front cover |
| 30 | 326.0583.0 | Transparent cover |
| 40 | 326.0584.0 | Bottom sheet metal |
| 50 | 326.0585.0 | Main board |
| 60 | 326.0586.0 | Fan |
| 70 | 326.0587.0 | Fan mount |
| 80 | 326.0588.0 | Rear cover |
| 90 | 326.0589.0 | Rear panel |
| 100 | 326.0590.0 | Strain Relief |
| 110 | 326.0591.0 | Power switch |
| 120 | 326.0592.0 | Knob |
| 130 | 326.0593.0 | Control panel |
| 140 | 326.0594.0 | Front panel |
| 150 | 326.0595.0 | Handle |
| 160 | 326.0596.0 | Housing |
| 170 | 326.0597.0 | Power cable |
| 180 | 326.0598.0 | Ground cable 2m |
| 190 | 326.0599.0 | Electrode holder |
| 200 | 326.0600.0 | Lifting belt |
| 210 | 326.0601.0 | Welding shield |
| 220 | 326.0602.0 | Wire brush |
NOTES
Never carry out repairs or technical modifications yourself. In this case, the warranty will be void and the manufacturer will decline any product liability for the device. Service and repair work must only be carried out by a qualified electrician. If you have any problems or need repairs, please contact the RED by Lorch service team.
You can also find detailed information on operation, maintenance and further instructions for handling RED devices in the operating manuals for RED welding machines
If you have any further questions or if there is a technical fault that needs to be repaired, please contact us via the contact form and also refer to our article: Welding machine faulty – what to do?
