In this article, you will find the spare parts list for the RED by Lorch TIG welding machine RED TIG 180 DC with the material number 990.4495.2.

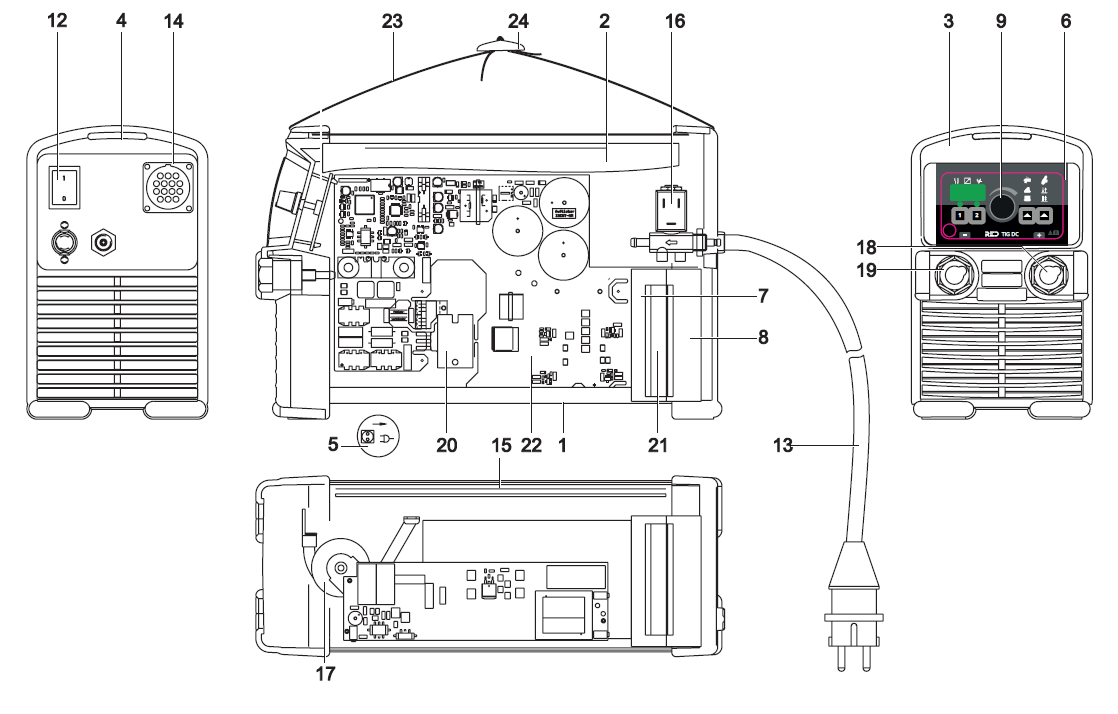

The exploded view shows the individual assemblies and components as well as accessories of the device including numbering.
The table lists the corresponding spare parts with their respective descriptions and material numbers.
| Pos | Mat.-No. | Description |
| 1 | 602.1807.0 | bottom plate G18-1 |
| 2 | 326.0463.0 | Housing |
| 3 | 604.1800.3 | Plastic front G18-3 RAL 9005 |
| 4 | 604.1801.1 | plastic backplane G18-1 RAL 9005 |
| 5 | 606.2027.0 | sticker pull mains plug 30 mm blue |
| 6 | 326.0779.0 | front plate RED TIG |
| 7 | 610.3026.0 | foam inset 95x94x25 |
| 8 | 610.3027.0 | foam inset 95x112x25 |
| 9 | 614.0550.7 | knob 23mm black shaft 6,35mm |
| 9 | 326.0778.0 | knob cap black |
| 12 | 657.0204.0 | switch 20A 250V~ FS 6,3 |
| 13 | 661.7513.5 | mains cable 3x2,5 Schuko 3FS 2,5m |
| 14 | 661.8210.0 | cable AMP14B - Microfit10 |
| 15 | 663.2549.1 | insulation foil 297,5x179,5x0,5 2x165° |
| 16 | 665.3018.0 | solenoid valve 230VAC 1/4“ - hose connector |
| 17 | 665.6251.0 | HF inductor H-R WA 24000047 |
| 18 | 665.7021.0 | insert sleeve 25-50 mm² ST13 MS |
| 19 | 665.7022.0 | insert sleeve 25-50 mm² ST13 MS hose connector |
| 20 | 713.0295.0 | Diode 2x100A 200V FRED |
| 20 | 663.2563.0 | Alufoil w. heat conductor wax 38,2x25,4 |
| 21 | 981.1456.0 | axial fan 12V DC |
| 22 | 326.0777.0 | SP-set power unit |
| 23 | 604.3612.0 | transportation belt 30x1500 black |
| 24 | 604.3641.0 | slide for transportation belt 30mm |
NOTES
Never carry out repairs or technical modifications yourself. In such cases, the warranty becomes void and the manufacturer rejects any product liability for the device. Service and repair work may only be carried out by a trained electrical specialist. If you have problems or need repairs, please contact the RED by Lorch service team.
Detailed information on operation, maintenance and further notes on handling RED devices can also be found in the operating instructions for RED welding machines.
If you have any further questions or if there is a technical defect that needs to be repaired, please contact us via the contact form and also refer to our article: Welding machine defective – what to do?
